IKI RAN Radar Image Collection
Atmospheric phenomena / Atmospheric lee patterns

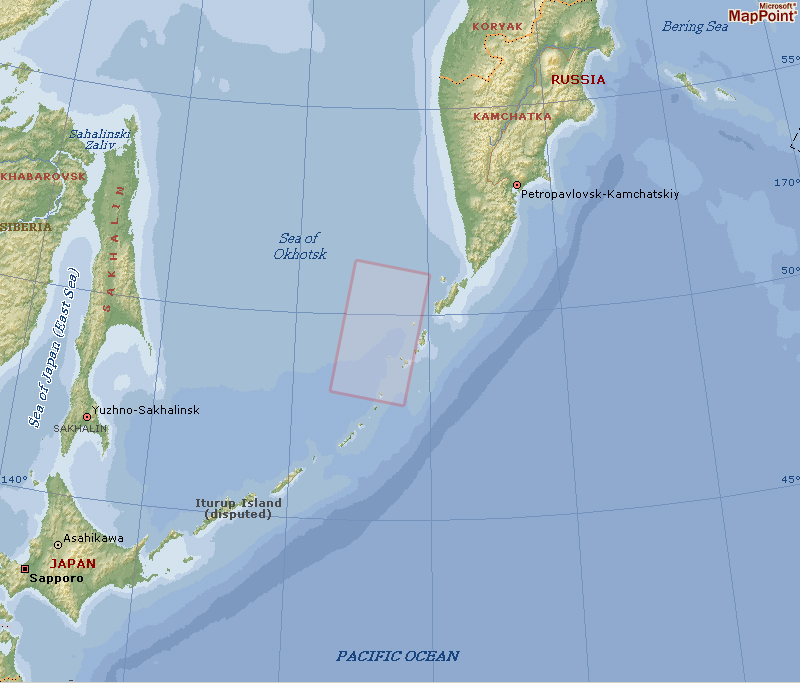

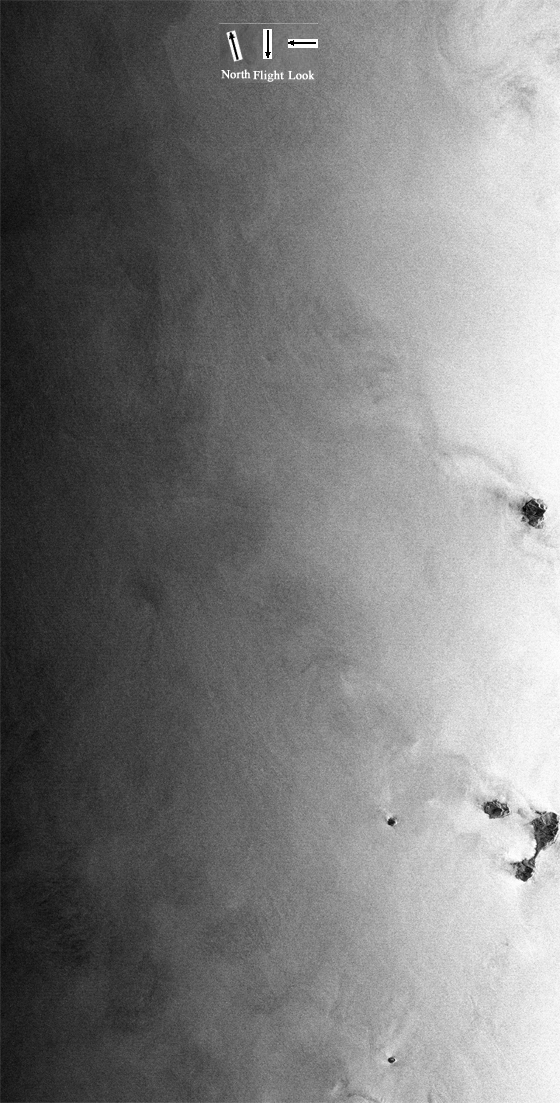

Image Preview/ Location map

Image name ASARws0506041027
Platform/Sensor Envisat/ASAR
Flight altitude/speed 800 km/6.8 km/s
Image partition None
Wavelength(s)/Frequency(ies)/Band(s) 0.057/5.25/C
Polarization(s) HH
Incidence angle(s) 29°-43°
Calibration Preview image: black is lowest NRCS, white is highest NRCS
Full images: Wide Swath ASAR format
Date/Time 04.06.05 / 10:27
Area Sea of Okhotsk
Coordinates 51.711°N, 151.963°E; 50.820°N, 154.962°E
48.073°N, 153.935°E; 48.495°N, 150.974°E
Surface geometry 183x360 km
Other signatures seen in the image None

Supplementary information

Source image :  image size: fragment 2439*4804 pixels; 1 pixel = 8 bits; pixel size: 75.0 x 75.0 m*m; full image file size: 52,5 Mb

Owner: IKI RAS, contact: O.Yu. Lavrova
