IKI RAN Radar Image Collection

Atmospheric phenomena / Atmospheric lee patterns

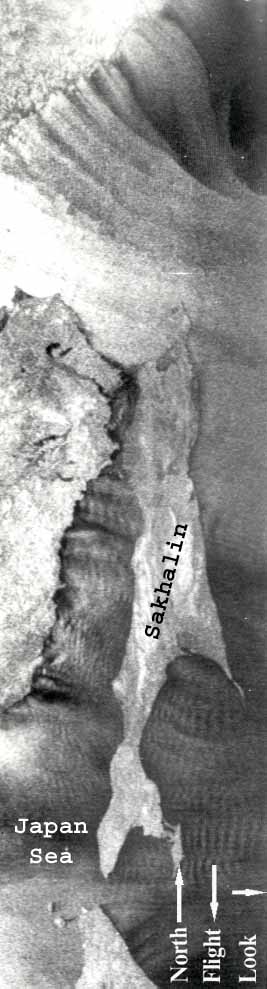

Image Preview

Image name OCEANX9711191826
Platform/Sensor Ocean-7/RAR
Flight altitude/speed 650 km / 6.9 km/s
Image partition No
Wavelength(s)/Frequency(ies)/Band(s) 0.0316 / 9.5 / X
Polarization(s) VV
Incidence angle(s) 21°-46°
Calibration Black is lowest value of radar signal, white is highest value of radar signal.
Calibration steps.
Date/Time 19.11.97 / 13:26
Area Northwestern Okhotsk Sea, Northern Japan Sea, Sakhalin Island
Coordinates 58.0°N, 137.0°E; 58.5°N, 144.5°E;
44.0°N, 140.0°E; 44.5°N, 145.5°E
Surface geometry 460km * 1725km
Other signatures seen in the image Atmospheric internal waves

Supplementary information

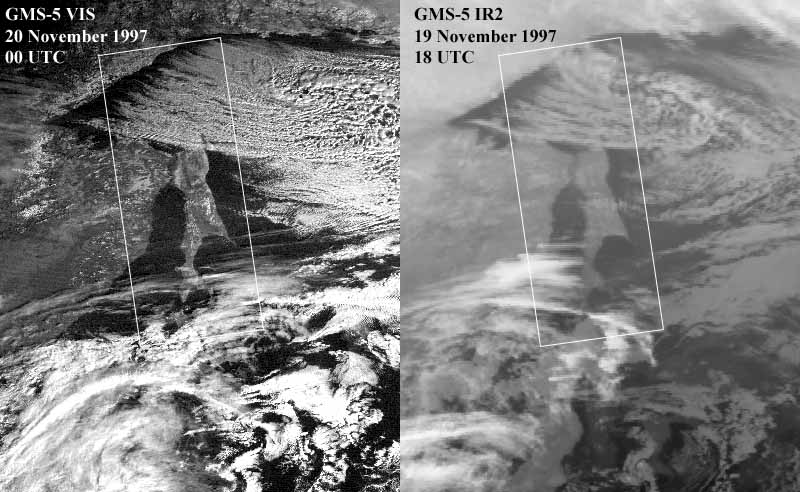

GMS-5 Visual and IR bands

Source image: image size: ~300*pxl*1000pxl; image resolution: 1500m*1500m; file size: 0.9MB
Contact: Leonid Mitnik; Vyacheslav Dubina
