IKI RAN Radar Image Collection
Atmospheric phenomena/ Convective patterns

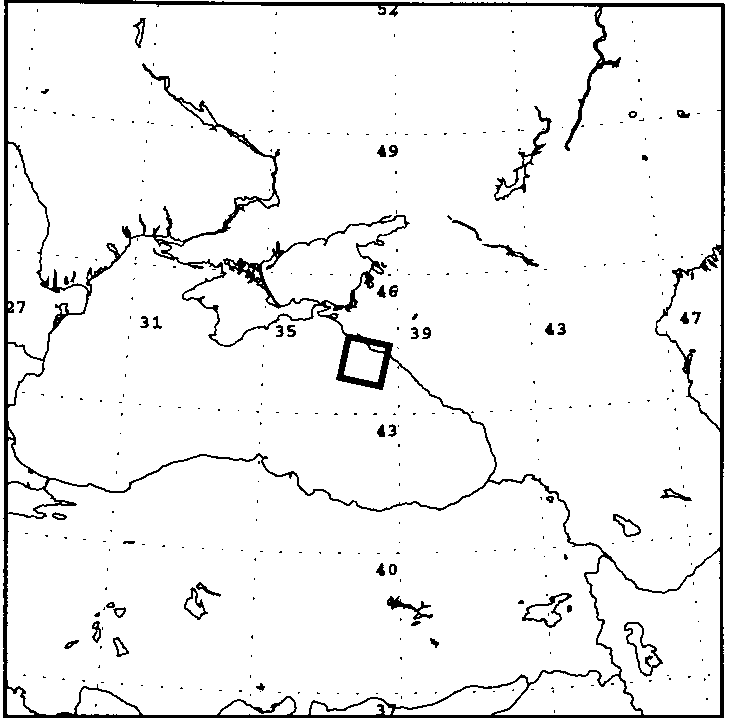

Image Preview/ Location map

Image name ERSC0208160814
Platform/Sensor ERS/SAR
Flight altitude/speed 785 km/6.8 km/s
Image partition No
Wavelength(s)/Frequency(ies)/Band(s) 0.057/5.3/C
Polarization(s) VV
Incidence angle(s) 23°
Calibration PRI format
Date/Time 16.08.02/08:14
Area Black Sea
Coordinates 44.665° N, 37.529° E; 44.477° N, 38.744° E;
43.601° N, 38.466° E; 43.788° N, 37.270° E
Surface geometry  100 x 102 km
Other signatures seen in the image Oceanic eddies

Supplementary information:

Hydrometeorological data:
wind: speed 1 m/s, dir. 170°;
temperature: air 25,4°C, water 26,0°C;
surface waves: SW, 2 points

Source image:  image size: 8000x8200 pixels; pixel size: 12.5 x 12.5 m, file size: 128Mb

Owner: IKI RAS, contact: O.Lavrova

References:
