IKI RAN Radar Image Collection
Atmospheric phenomena/ Convective patterns

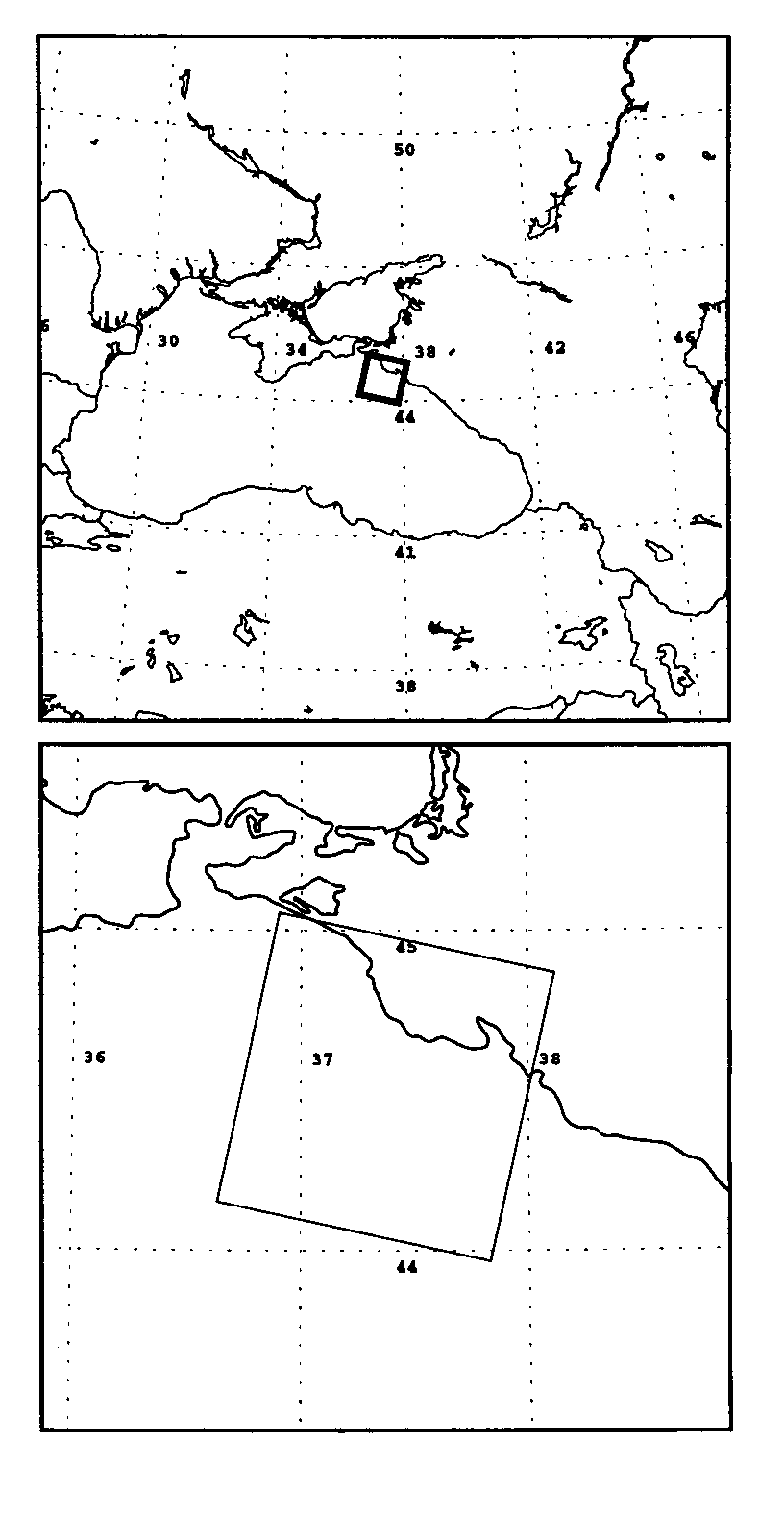

Image Preview/ Location map

Image name ERSC9909150819
Platform/Sensor ERS-2/SAR
Flight altitude/speed 785 km/6.8 km/s
Image partition No
Wavelength(s)/Frequency(ies)/Band(s) 0.057/5.3/C
Polarization(s) VV
Incidence angle(s) 23°
Calibration Preview image: black is lowest NRCS, white is highest NRCS
Full images: PRI format
Date/Time 15.09.99 / 08:19
Area Black Sea
Coordinates 45.055° N, 36.903° E; 44.868° N, 38.119° E;
43.967° N, 37.831° E; 44.152° N, 36.635° E
Surface geometry 100x102 km
Other signatures seen in the image None from the list of interest

Supplementary information:

Source image:  image size: 8000x8200 pixels; pixel size: 12.5 x 12.5 m, file size: 128Mb

Owner: IKI RAS, contact: mityag@mx.iki.rsi.ru
