Image name
|
RARKu9207161839
|
| Platform/Sensor |
Tu-134/RAR |
| Flight altitude/speed |
2000 m / 525 km/h |

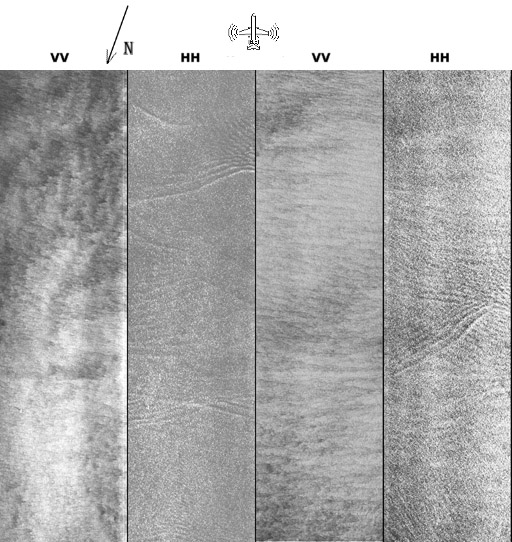

| Image partition |
4 fragments: leftHH, leftVV, rightHH, rightVV
|
| Wavelength(s)/Frequency(ies)/Band(s) |
2,25cm/13,6GHz/Ku |
| Polarization(s) |
VV, HH |
| Incidence angle(s) |
72-84° |
| Calibration |
Black is lowest value of radar
signal, white is highest value of radar signal
Full images: calibration coefficients for different strips are different
Image preview: gray scale individually optimized for each channel |
| Date/Time |
16.07.92 / 18:39 - 19:02 |

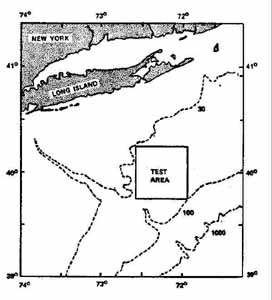

| Area |
Northwestern Atlantic, New York Bight |
| Coordinates |
Start: 40° 28'N, 71°
57'W ;
End: 38° 49'N, 71° 11'W |
| Surface geometry |
47,2km*12,5km at each
board |
| Other signatures seen in the image |
Oceanic internal waves |
