IKI RAN Radar Image Collection
Oceanic phenomena / Internal waves
Preview/

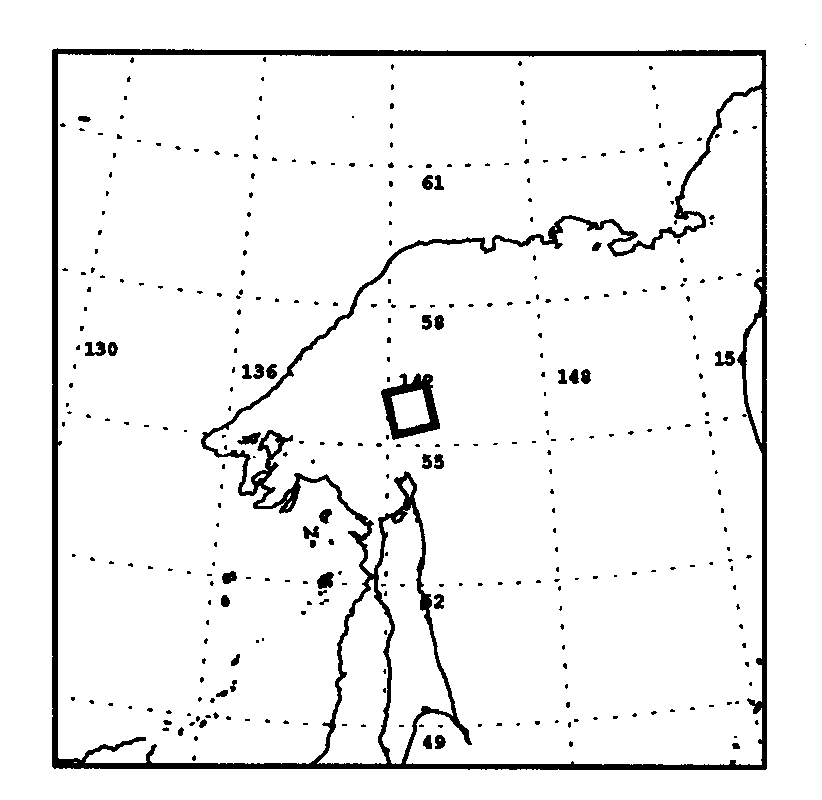

Location map
|
Image name
|
ERSC9810011227
|
| Platform/Sensor |
ERS-2/SAR |
| Flight altitude/speed |
785 km/6.8 km/s |
| Image partition |
2 overlapping images
|
| Wavelength(s)/Frequency(ies)/Band(s) |
0.057/5.3/C |
| Polarization(s) |
VV |
| Incidence angle(s) |
23° |
| Calibration |
Preview image: black is lowest NRCS, white is highest NRCS
Full images: PRI format |
| Date/Time |
01.10.98 / 12:27 |
| Area |
Okhotsk Sea |
| Coordinates |
56.564°N, 141.696°E, 56.773°N, 143.259°E
55.440°N,143.815°E, 55.235°N, 142.306°E |
| Surface geometry |
140x102 km |
| Other signatures seen in the image |
Oceanic and atmospheric fronts, rain event |
Supplementary information
Source image :
image size: 2*(8171*7878) pixels; 1 pixel = 8 bits; pixel size: 12.5 x 12.5 m*m;
file size: 2*64Mb
Owner: IKI RAS, contact: O.Yu. Lavrova
References:
Lavrova O. Yu., M. I. Mityagina, Detection and interpretation of oceanic and atmospheric signatures in spaceborne radar imagery of the North-Western Pacific // Proc. ERS-ENVISAT Symposium,Gothenburg, Sweden, 16-20 October 2000.
