IKI RAN Radar Image Collection
Oceanic phenomena / Internal waves

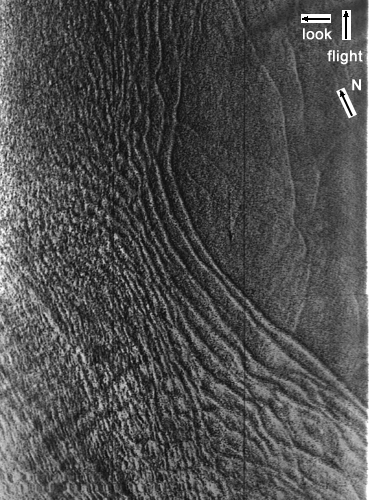

Preview/

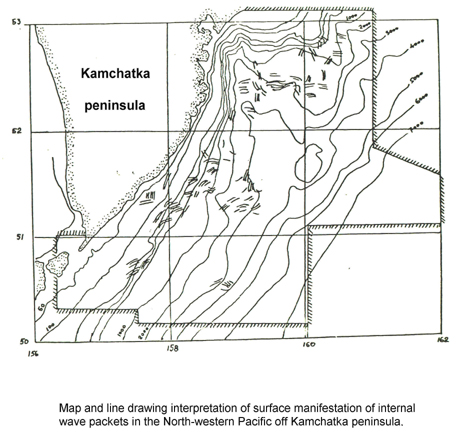

Location map
|
Image name
|
RARKu8308250407
|
| Platform/Sensor |
AN-24/RAR |
| Flight altitude/speed |
2150 m / 355 km/h |
| Image partition |
No
|
| Wavelength(s)/Frequency(ies)/Band(s) |
2,25cm/13,6GHz/Ku |
| Polarization(s) |
HH |
| Incidence angle(s) |
72-84° |
| Calibration |
Black is lowest value of radar
signal, white is highest value of radar signal
|
| Date/Local time |
25.08.83 / 04:07 - 04:10 |
| Area |
Northwestern Pacific near Kamchatka |
| Coordinates |
Start: 54° 30'N, 162°
32'E ;
|
| Surface geometry |
~21km*16km |
| Other signatures seen in the image |
Ship wake |
Supplementary information:
Hydrometeorological data: wind: speed 25 km/h, dir. 350°; sea waves: 4 points

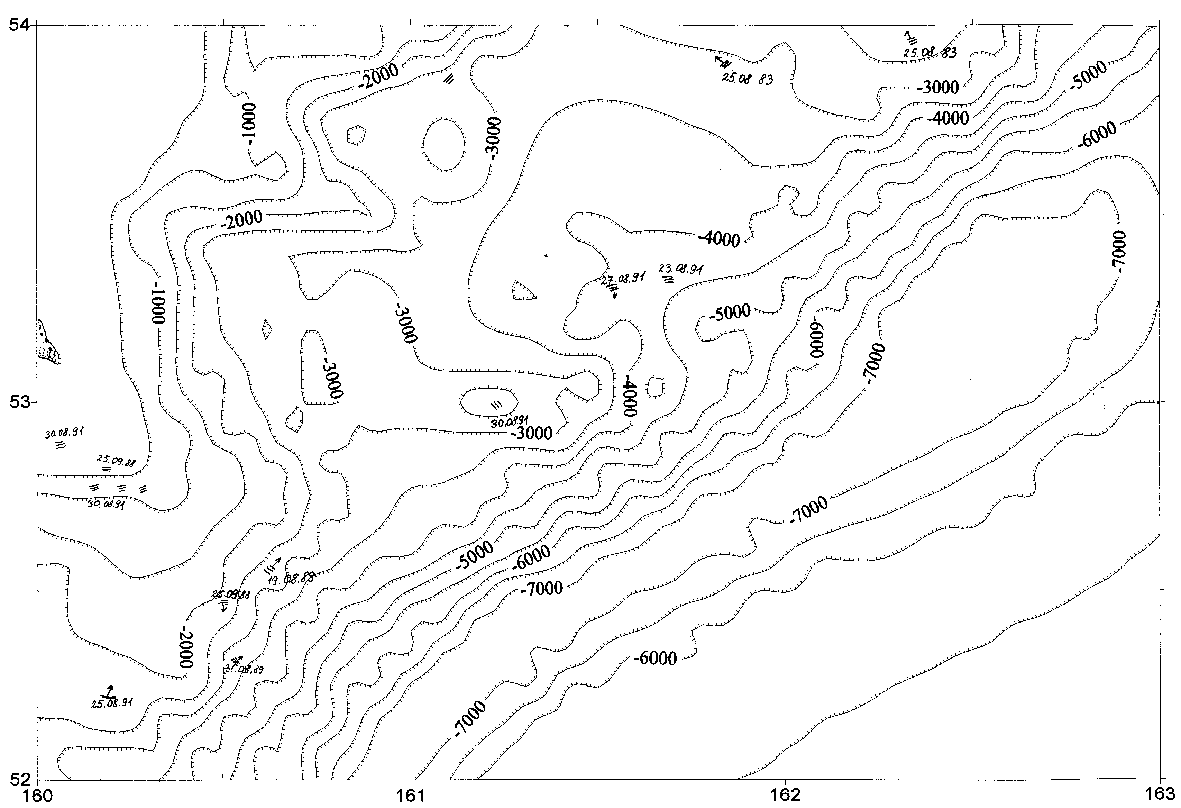

Bottom topography map
Source image: scanned film; image size: 4541x3362 pixels;
file size: 8,4Mb
Owner: IKI RAS, contact: O.Yu. Lavrova
References:
