Image name
|
RARKu9207181514
|
| Platform/Sensor |
Tu-134/RAR |
| Flight altitude/speed |
2000 m / 465 km/h |

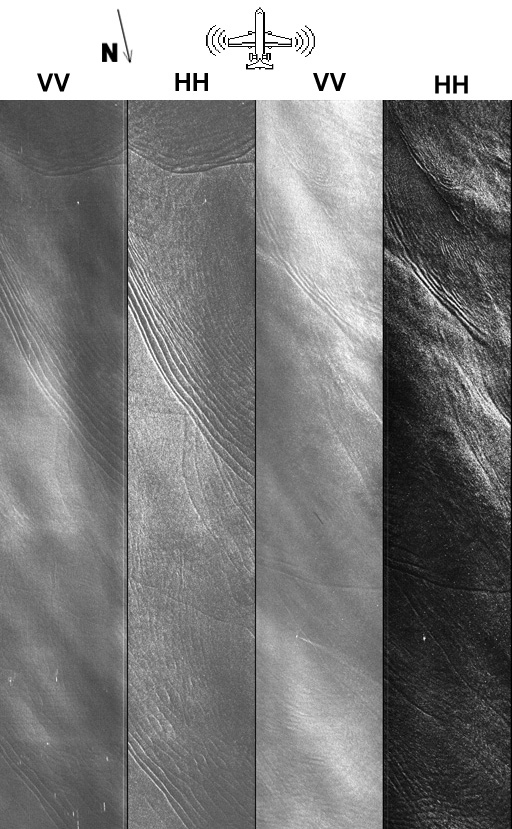

| Image partition |
4 fragments: leftHH, leftVV, rightHH, rightVV
|
| Wavelength(s)/Frequency(ies)/Band(s) |
2,25cm/13,6GHz/Ku |
| Polarization(s) |
VV, HH |
| Incidence angle(s) |
72-84° |
| Calibration |
Black is lowest value of radar
signal, white is highest value of radar signal
Full images: calibration coefficients for different strips are different
Image preview: gray scale individually optimized for each channel |
| Date/Time |
18.07.92 / 15:14 - 15:24 |

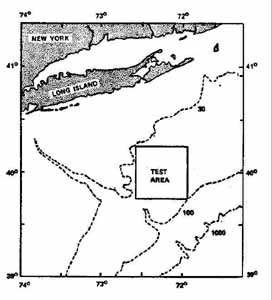

| Area |
Northwestern Atlantic, New York Bight |
| Coordinates |
Start: 40° 19'N, 72°
03'W ;
End: 39° 40'N, 72° 12'W |
| Surface geometry |
72,3km*12,5km at each
board |
| Other signatures seen in the image |
None from the list of interest |
