FM-3I Instrument

Magnetic field measurements onboard the Interball Tail spacecraft are carried out by the FM-3I instrument which consists of two flux-gate magnetometers covering two different ranges: [-200, +200] nT and [-1000, +1000] nT. Besides scientific goals, the FM-3I experiment data is used to perform the attitude control of the Interball Tail spacecraft.


From Michael Nozdrachev , Alexander Skalsky and Valery Styazhkin

1. August 22, 1995

2. October 18, 1995

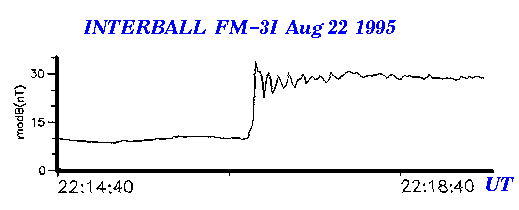

The quasi-perpendicular Earth's bow shock encountered 22 August 1995.

Top of the page

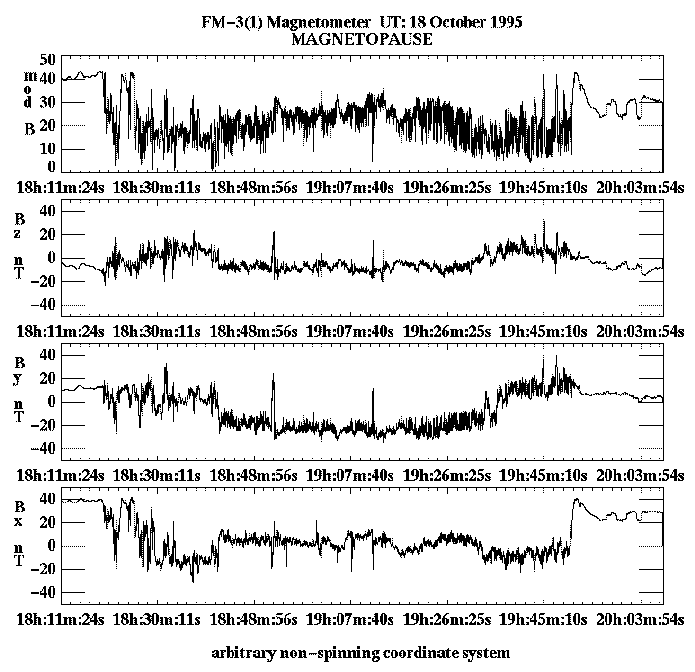

Few crossings of the magnetopause recorded with the FM-3I magnetometer anboad the INTERBALL spacecraft on 18 October 1995.

Top of the page
