Time interval for presented graphs is less than 1 hour, and it contains several attitude intervals inside. There are not any amplitude or phase breaks and gaps in the restored magnetic field.
Click the image for details.

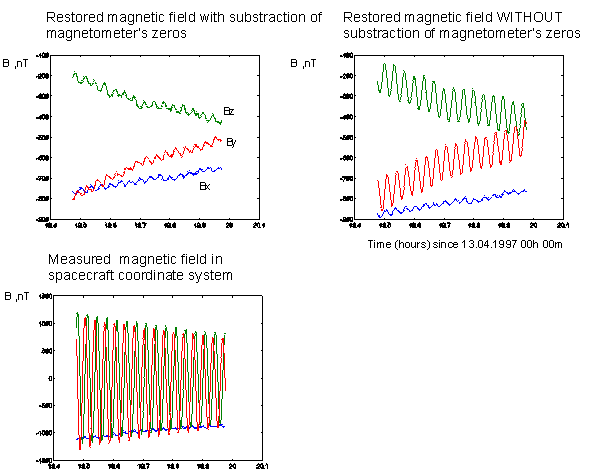

| These plots also were generated during
attitude quality tests. On the lowest panel the measured magnetic field
are ploted. There are great 2-min oscillations caused of rotation of the
spaceraft. Two upper graphs are the results
of application of the attitude parameters to the measured magnetic field.
To obtaining a good results, some additional procedures should be executed.
Substraction of magnetometer's zero is the main.
Time interval for presented graphs is less than 1 hour, and it contains several attitude intervals inside. There are not any amplitude or phase breaks and gaps in the restored magnetic field. Click the image for details. |
|
