 Experiment: HRSC

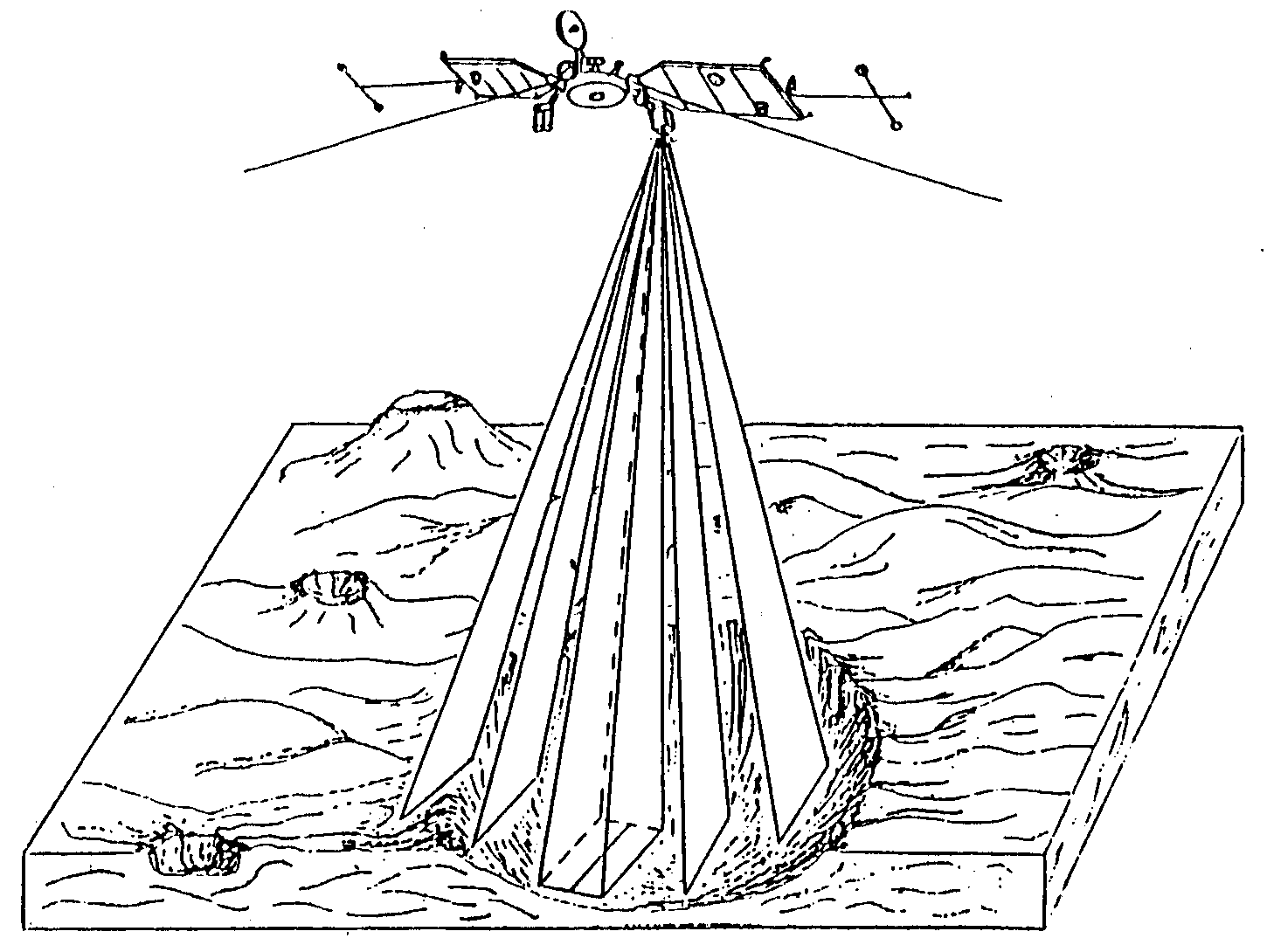

HIGH RESOLUTION STEREOSCOPIC TV-CAMERA


Detailed survey of Mars


Main scientific objectives:

  • Detailed topographic survey, multiband imaging and photometric studies of the surface with 3D reconstruction of its relief.
  • Atmospheric studies cloud structures, limb brightness, terminator features.

    Instrument: Multifunctional high-resolution stereoscopic TV camera built around 9 CCD arrays.


    Main performance characteristics:
    Focal length(mm) 175
    Angular resolution (sec of arc/pxl)8
    Spatial resolution (m) from H-300 km 12
    Radiometric resolution (bit) 8
    Spectral range (¦ m) 0.4 - 1.0
    Number of pixels per scanline 5184
    Angle of view (degree)11.5
    Swath width (km) from H=300 km62
    Convergence angle (degree)+/-20
    Mass [kg]24





    Cooperation: Russia, Germany,

    Contact persons:G.Neukum (PI), neukum@terra.pe.ba.dlr.de
