 Experiment: SPICAM

MULTICHANNEL OPTICAL SPECTROMETER

SOUNDING OF THE ATMOSPHERE OF MARS



Main scientific objectives:

  • vertical profiles of ozone, water vapour, CO, aerosols and temperature in the middle and lower atmosphere;
  • diagnostic of the ionosphere by measuring of ions CO2+, CO+, and neutral species H and CO;
  • global distribution of water vapour and building of the density model of the atmosphere.

    Experimental technique:
  • measuring spectra of sunlight passed through the Martian atmosphere at the limb of the planet;
  • measuring spectra of sunlight reflected from the surface and attenuated in the atmosphere of Mars;
  • measuring auroral spectra of the Martian atmosphere

    • Main parts of the instrument:

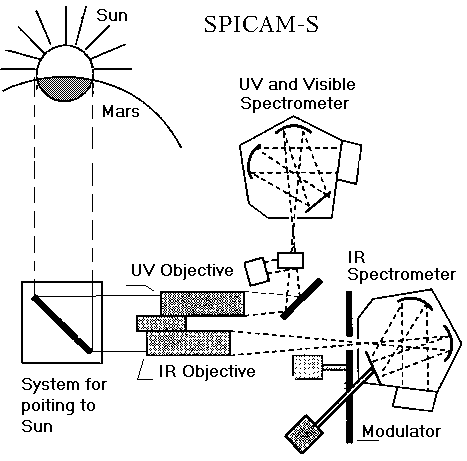

    SPICAM-S - Solar part of the instrument is a two-channel spectrometer for the technique of Solar occultation. It is mounted on the body of the spacecraft:
    UV and visible channel = 250-650 nм, l/Dl = 300;
    IR channell = 1,8-4,8 mm, l/Dl = 1000

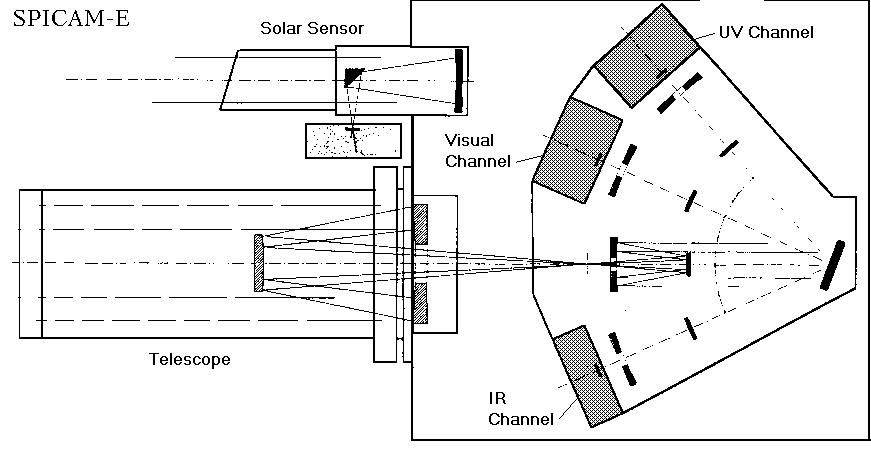

    SPICAM-E -a versatile spectrometer for the technique of stellar occultation and observations of the Martian atmosphere; it includes three spectral channels, and it is mounted on the PAIS platform :
    UV channell = 110-300 nм, Dl = 3 A;
    Visible channell = 200-800 nм, Dl = 3 или 15 A;
    Near IR channell = 600-1100 nм, Dl = 3 or 0.58 A for
    measuring H2O at 936 nм.
    Mass46 kg




    Cooperation: Russia, France, Belgium.

    Contact persons:O.I. Korablev oleg@irn.iki.rssi.ru
    J.-L. Bertaux bertaux@aerov.jussieu.fr
    M. Ackerman acherman@oma.be
