The LIDAR (Light Detection and Ranging)
 Instrument and The Mars Microphone


IKI, Russia's Space Research Institute

LIDAR The Mars Microphone LIDAR and Microphone Team

Links
LIDAR The Light Detection and Ranging (LIDAR) is provided by the Space Research Institute (IKI) of the Russian Academy of Science, under the sponsorship of the Russian Space Agency (RSA). This is the first Russian instrument to fly on a United States planetary spacecraft. The LIDAR instrument will look for ice and dust clouds.

The Planetary Society's Mars Microphone is the first privately funded instrument from a nonprofit organization to fly aboard a NASA mission. The Mars Microphone will listen for any sounds that might be detected on the Red Planet.

The LIDAR system is a laser sounder located on the Mars Polar Lander deck. It is composed of a sensor and electronics assembly. The LIDAR transmitter uses a galium-aluminum-arsenic laser that emits energy in pulses at a constant rate and wavelength.

The LIDAR has two sounding modes -- active and acoustic:

  1. During active sounding, the instrument sends out pulses of light and then times their return in order to locate and characterize ice and dust hazes to a level of 750 meters.
  2. An acoustic device, the Planetary Society's Mars Microphone, is part of the LIDAR assembly.

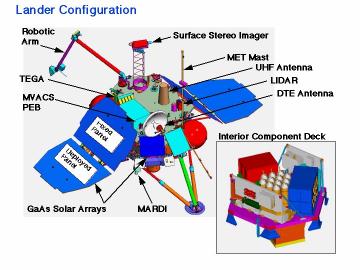

You can see how the LIDAR is attached to Mars Polar Lander in the diagram below.

The Principal Investigator of the LIDAR is Viacheslav Linkin of IKI.
