Howard Eisen, JPL
Principal Investigator, Soil Mechanics Technology Experiment
Poptart.gif Source: Rover Front Right Camera

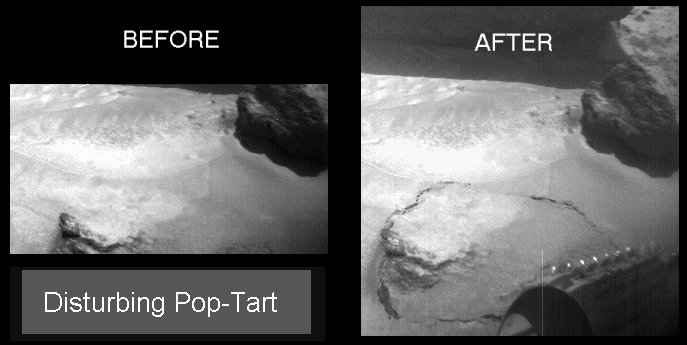

Pop-tart, a small rock or indurated soil material was pushed out of the surrounding drift material by Sojourner's front left wheel during a soil mechanics experimentRF26110.gif Source: Rover Front Right Camera

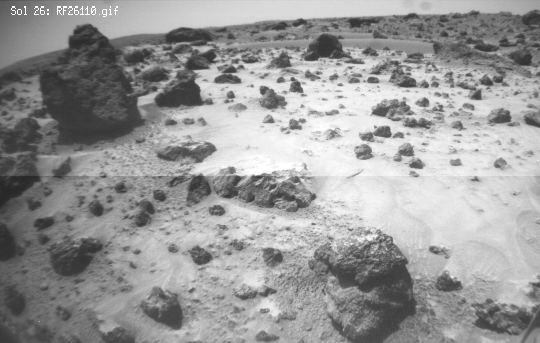

The Rover is located next to Pooh bear(rock at left) and Piglet (not seen)as it looks out toward Mermaid Dune. The soil textures differ from the foreground where the soil a poorly sorted mix of small rocks, fines and clods to the area a bit ahead of the rover where the surface is covered with a bright drift material.Soil experiments where the rover wheels dug in the soil revealed that the cloddy material exists underneath the drift.front_yogi.gif Source: IMP

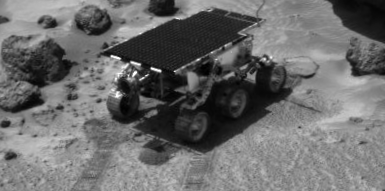

The Rover, while on its way to Yogi, performed several soil mechanics experiments. Piles of loose material churned up from the experiment are seen in front of and behind the Rover. Pop-tart is visible near the front right rover wheel.Shaggy_sol23.gif Source:IMP

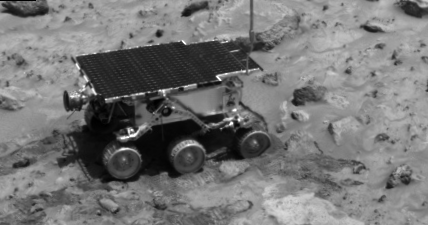

The IMP caught this image of the Rover as it was digging in the "compressible" material near Casper to determine the soil's mechanical properties.Shaggy is the large rock behind the Rover.

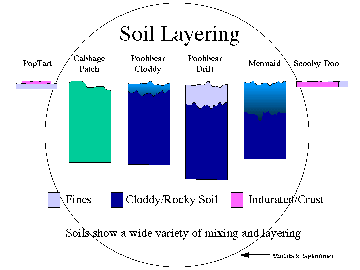

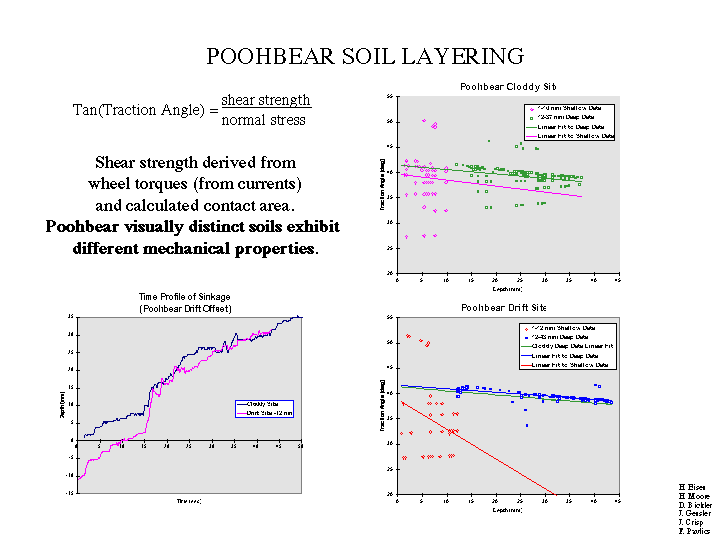

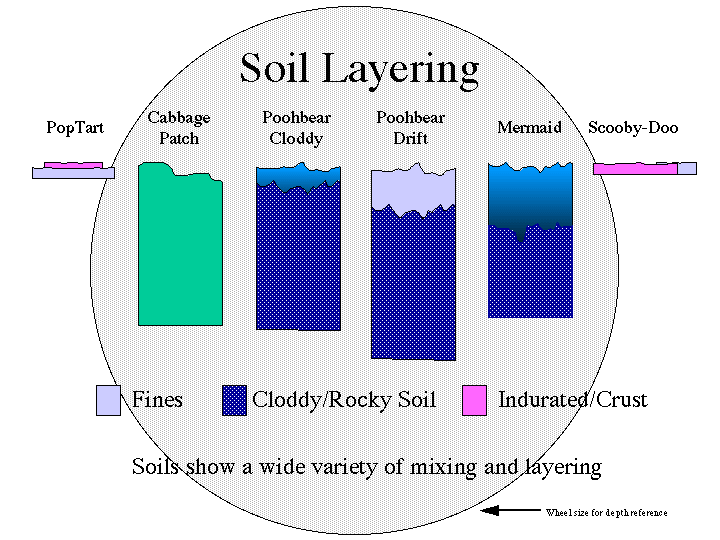

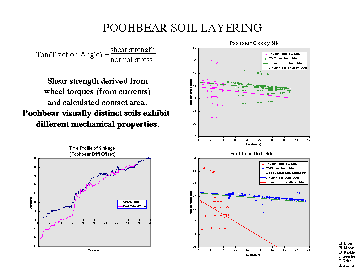

layer1_th.gif This chart illustrates evidence of layering found with the Sojourner rover soil mechanics experiment. In this investigation, the rover wheels are spun while simultaneous measurements of motor currents, vehicle kinematic configuration, and temperature are recorded. From these data, wheel torque and, in turn, shear force at the soil/wheel interface are computed. This tractive coefficient (analogous to friction coefficient) is used to characterize the soils. layer2_th.gif The chart above shows graphical representations of some soil structures determined by the Sojourner rover soil mechanics experiment.
