CYlindrical GAmma-ray Monitor


CYGAM CHARACTERISTICS ACCORDING TO RESULTS OF MONTE-CARLO SIMULATIOUS

a - the e - e + pair opening angle

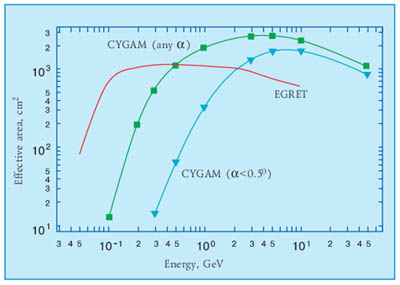

Effective area versus photon energy for normal incidence. Green and blue curves - CYGAM telescope (squares - no constraints on the angle a, triangles - a<0.50 ); red curve - EGRET telescope.

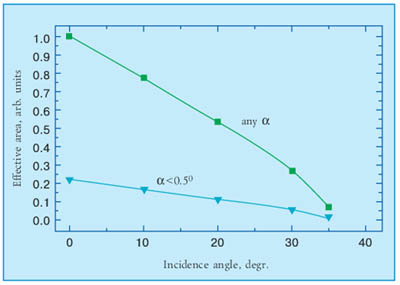

Effective area versus photon incidence angle to relative the longitudinal telescope axis (squares - no constraints on the angle a, triangles - a<0.50, spectral index g=2).

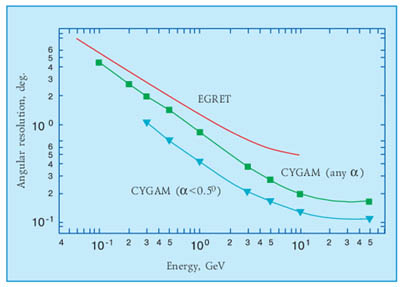

Angular resolution versus photon energy for normal incidence. Green and blue curves- CYGAM telescope (squares - no constraints on the angle a, triangles - a<0,50); red curve - EGRET telescope.

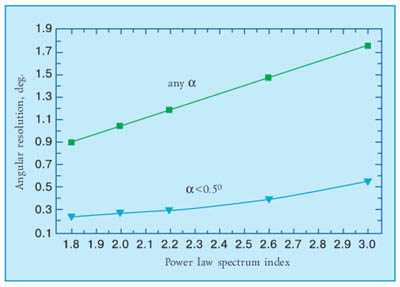

Angular resolution for normal to the axis X incidence versus source power law spectrum index (squares- no constraints on the angle a, triangles- a<0,5 0).

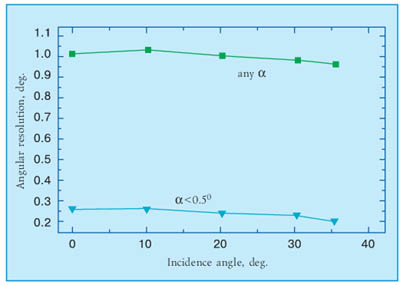

Angular resolution versus photon incidence angle relative to the longitudinal telescope axis (squares - no constraints on the angle a, triangles - a<0,5 0, spectral index g=2).

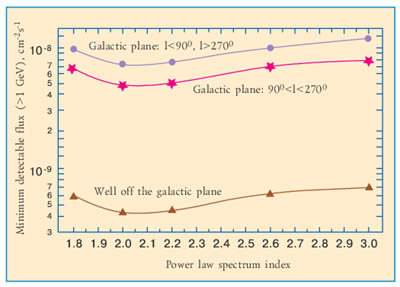

Minimum detectable flux of a compact source
versus the source power law spectrum index (
a<0,5 0, one year of observation).

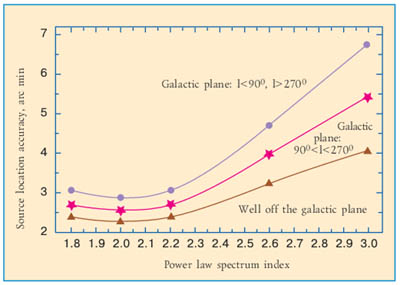

Source location capability for a year of observation for a source with the flux 10 8 cm-2 s 1 (Eg>1GeV) versus the source power law spectrum index.

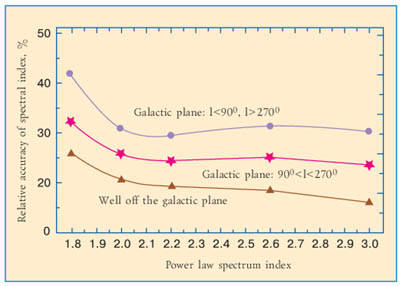

Relative accuracy of  spectral index estimation after a year of observation for a source  with the flux 10 8 cm -2 s 1 (Eg>1GeV)  versus the source power law
spectrum index.
